REPAIR KIT

Accessories REPAIR KIT
E-mail us Do you have any questions?

Purpose of use

If you are using Teramax Plus or other Double Braid Winchline and the rope surface has external damage, you could repair the rope with DONGYANG REPAIR KIT. It contains everything needed for repair.

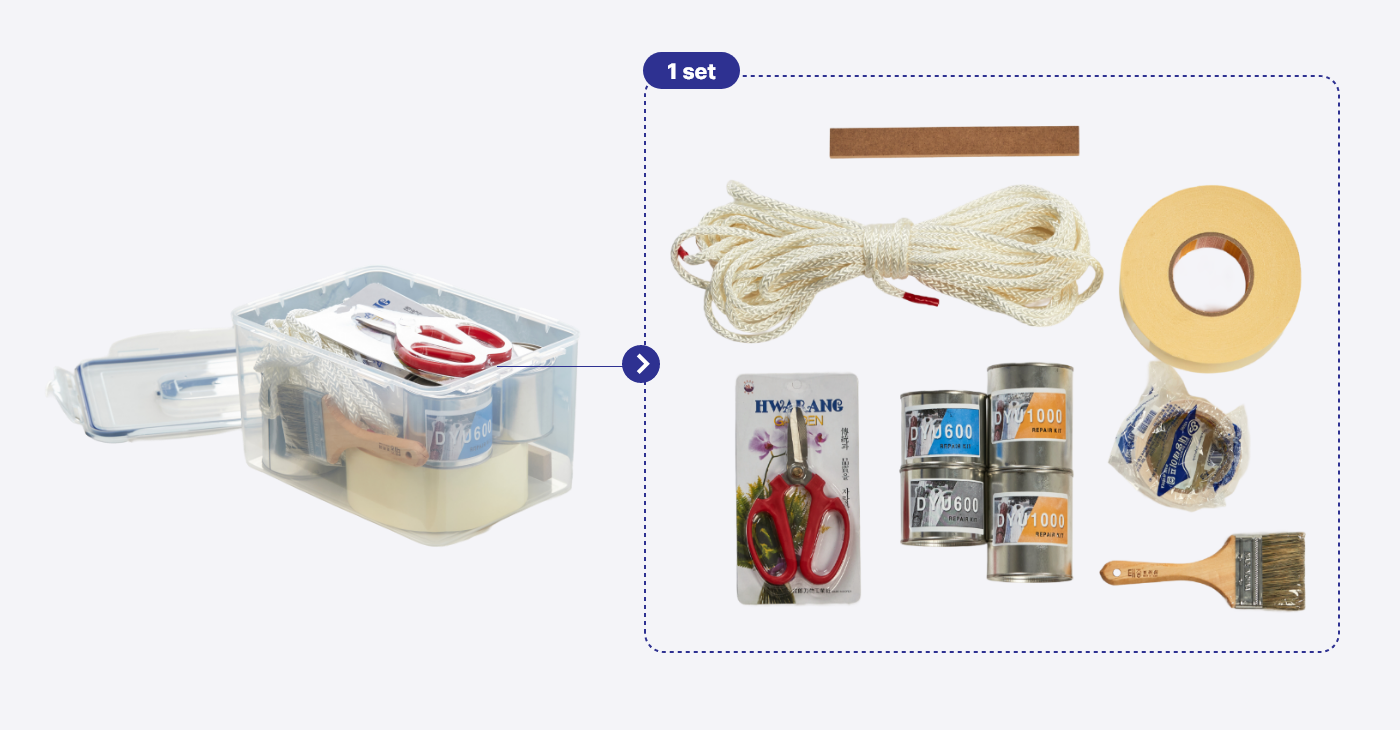

Content

Protector Type Description
DYU 1000 Coating Material
DYU 600 Liquid Hardener
Braid Rope For surface repair
Paint Brush Painting coating mixture
Wooden Stick DYU 1000 & DYU 600 For Mixing
Scissors & Tape Need for repair process

How to use

  1. 1 Show Range First, locate and mark two opposite points 50mm from the part externally damaged in both directions.

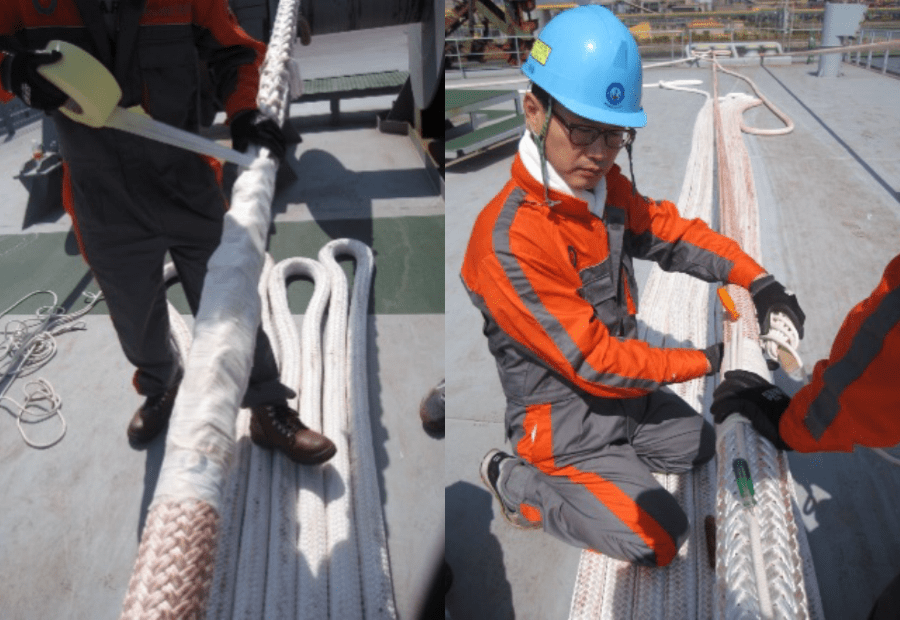

  2. 2 Taping A rope in the REPAIR KIT shall be tightly fixed on the surface by using a tape at 50mm length away from the marked points to seize for repair in both sides.

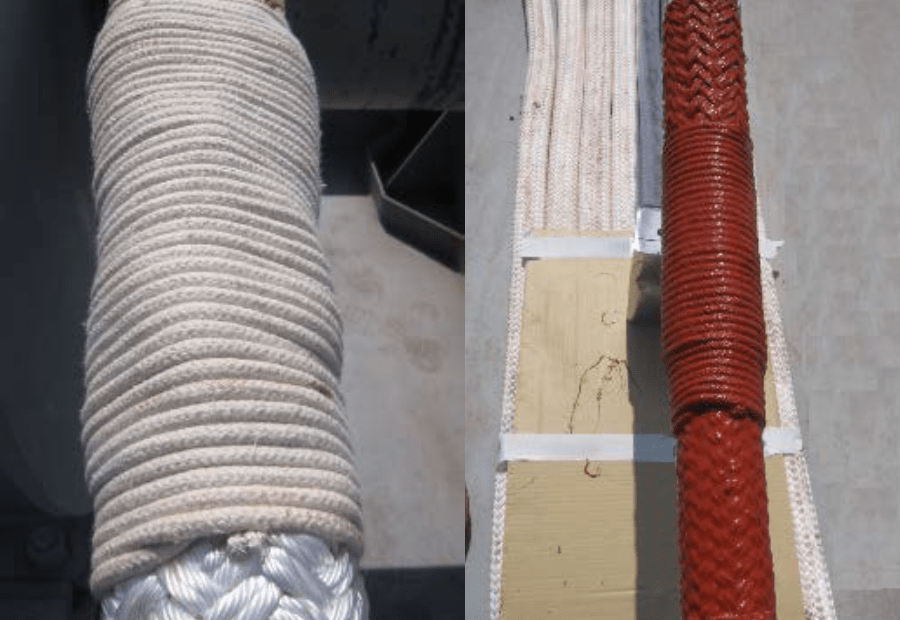

  3. 3 Sizing Processing The rope shall be tightly wound in sequential order from the point marked in the left. It’s important to keep the seizing very hard during work. This work should be done by the marked part in the opposite side. After winding, the end of the rope shall be cut in proper length considering putting it inside the seized part
  4. 4 Mixing The rope shall come out from the seized part after putting it in the loop and pulling the rope in the opposite side. After making the whole seized part hard enough, please cut rope ends in both sides.
  5. 5 Coating To complete the repair, DYU 1000 and DYU 600 shall be mixed in the percentage of 60% : 40% respectively. If the mixed material shows high viscosity, please paint it on the repair part by using a brush contained in the REPAIR KIT. Especially, it is advisable to apply in a thick even layer over the repair part including the existing rope surface.
  6. 6 24-hour natural drying It takes 24 hours to dry up in natural dry conditions.
